Features

  • Wide measuring range of 0.3% to 26% moisture content
  • Factory-supplied calibration curves included; Wool, Cotton, Rayon, Flax yarn, Jute yarn, Hemp yarn, Acetate, Nylon, Polyacrylic, Polyester and Digit (Reference scale)
  • Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns.
  • Automatically calculates average measurement values
  • Automatic temperature compensation
  • Memory Enables quality control and documentation on location
  • Menu languages: German, English, French, Italian, Spanish and Russian
  • No conversion tables needed!

Built-In Factory Calibration Curves

Textile Type Measuring Range
Wool 13% - 26%
Cotton 1.5% - 13%
Rayon 4% - 26%
Flax Yarn 5.5% - 15%
Jute Yarn 8% - 24%
Hemp Yarn 5% - 17%
Acetate 3.5% - 13%
Nylon 1.5% - 6.5%
Polyacrylic 0.2% - 3%
Polyester 0.5% - 4%
Digit (Reference Scale) 0 - 100 units (Reference Scale)

Electrodes

Standard Electrodes & Accessories
tmm 205 205

Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm)
50205M

tmm 207 207

Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm)
50207M

1 meter length cable to connect electrode to indicator
 50200M 200-TEM1

1 meter length cable to connect electrode to indicator
50200M

Electrode holder. Fixture to secure interchangeable electrodes with connection for 200-TEM1 cable.
 50204M 204

Electrode holder. Fixture to secure interchangeable electrodes with connection for 200-TEM1 cable.
50204M

Optional Electrodes
202 202

For raw cotton, with a friction clutch permitting adjustment of a constant pressure. For measuring bulk goods such as cotton etc.The material is poured into the cup and compressed with the pad of the compression screw. As the material is compressed, it is crushed on the crusher cone to ensure accurate readings. The electrode connects to the moisture meter direct, without the use of the universal measuring cable.
Requires use of additional cable, P/N: 50400CM

tmm 206 206

For measuring yarns, cross-wound bobbins and hanks, needle length 45 mm, weight 45 g
50206M

For measuring harder materials e. g. felt, needle length 17 mm, weight 40 g 208

For measuring harder materials e. g. felt, needle length 17 mm, weight 40 g
50208M
tmm 209 209

Stab electrode for textiles in sacks and rolls (needle length 325 mm)
50209M
tmm 209 209 BSM

Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales
piercing point 75 mm, insulated shank 175 mm (total length app. 250 mm)
50209BSM
tmm 210 210

Knife electrode for rolls or bales of textile fabric (knife length 110 mm)
50210M
tmm 211 211

Roller electrode for running webs of textiles (roller 27 mm Ø)
50211M
tmm 212 212

Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø)
50212M
tmm 213 213

Surface electrode for fabrics (surface 23 mm Ø)
50213M
tmm 299 299

Calibration electrode with a fixed calibration value
50299M

Related Products

Click image for more info
Calibration Electrodes for TMT-425Textile Moisture Meter

textile moisture meter TEM Aqua Boy
Click image for more info
- Easy to use for many applications
- Multiple scale for direct readings for wool, rayon and cotton
DHT-2 Moisture Meter HUMY TESTER II
Click image for more info
- Instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material.

Complete Kit

The TMT-425 Textile Moisture Meter will be delivered as a complete set, including:

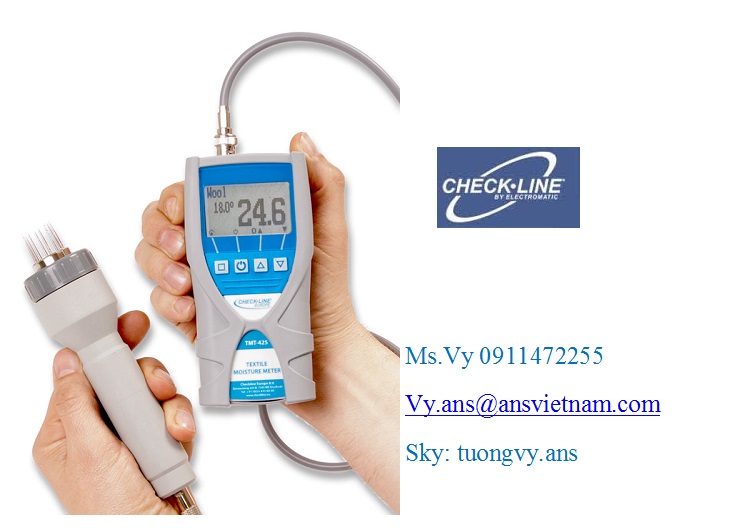

TMT-425 Textile Moisture Meter
- Connecting Cable TMT-425-CABLE
- Electrode Holder 204
- Electrode 205
- Electrode 207
- Batteries
- Carrying Case

The TMT-425-USB contains all of the above items including software and a USB cable.

Specifications

Measuring Range 0.3% to 26% moisture content
Resolution 0.1%
Calibration Curves Wool, Cotton, Rayon, Flax yarn, Jute yarn, Hemp yarn, Acetate, Nylon, Polyacrylic, Polyester and Digit (Reference scale)
Measuring Technique Electrical Resistance
Menu Languages English, German, French, Italian, Spanish and Russian
Housing Meter: Plastic with IP40 classification
Data Recording 10,000 measurements with date, batch and temperature
Display Grafic LCD display with backlight (128 x 64 pixels)
Temperature Automatically in °C or °F using a built-in temperature probe
Operating Temperature 0 °C to 40 °C
Storage Temperature -20 °C to 60 °C
Power Supply 4 x 1.5 Volt AA Alkaline Batteries
Data transfer (only for TMT-425-USB) Via USB-port (supplied with USB cable and software)
Dimensions 740 x 65 x 40 mm
Weight 450 gr. including batteries
Warranty 2 years
