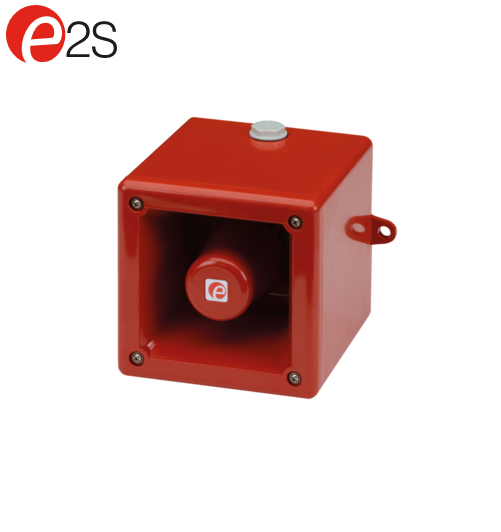

anhnghisonhcmCòi báo (Alarm Sounder) - E2S
Model: A105NXDC024R/C-F-UL
Specification:
| Maximum output: | 112dB(A) @ 1 metre [103dB(A) @ 10ft/3m] |
| Nominal output: | 105dB(A) @ 1m +/- 3dB – Tone 2 [96dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 105dB(A); Min. 96dB(A) – Tone 2 |
| Effective range: | 60m/197ft @ 1KHz |
| Voltages DC: | 24V dc (10-30V dc); 48V dc (35-60V dc); 110V dc (72-130V dc) [24V dc units can use 24V ac for single stage apps.] |
| Voltages AC: | 24V ac; 115V ac; 230V ac |
| Stage switching: | Negative Positive switching option available Reverse polarity stage switching on DC units. |
| Ingress protection: | IP66 |
| Enclosure material: | High impact UL94 V0 & 5VA FR ABS |
| Enclosure colour: | Red (RAL3000), Grey (RAL7038) & White. |
| Cable entries: | 2 x M20 clearance gland entries in side & back |
| Terminals: | 0.5 to 1.5mm² cables. |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 0.75kg/1.65Ibs AC:1.00kg/2.2Ibs |
|
*SPL data +/-3dB(A). Measured at optimum voltage.
|
|
