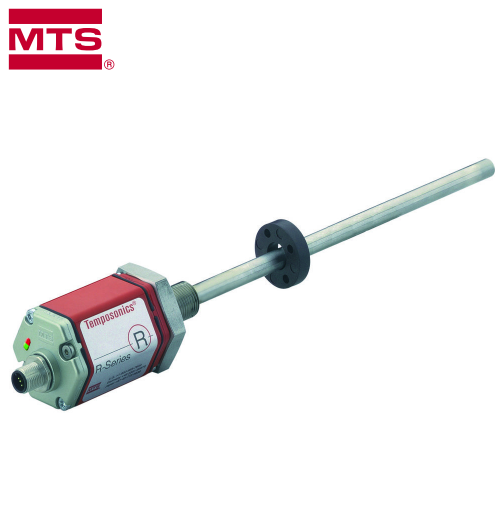

Cảm biến vị trí (Position sensor) - MTS Sensor

Model: RPO0350MR081A01

Technical data:

Input

Measured value: Position, velocity / Option: Multi-magnet measurement (max. 4 positions simultaneous)

Stroke length: Profile: 25…5000 mm / Rod: 25…7600 mm

Output

Interface: Ethernet POWERLINK Standardization Group (ESPG)

Data protocol: POWERLINK V2 according to IEEE 802.3

Accuracy

Resolution - Displacement: up to 1 µm

Update time 1.0 ms up 2400 mm / 2.0 ms up 4800 mm / 4.0 ms up 7600 mm stroke length

Linearity 1 < ± 0.01 % F.S. (Minimum ± 40 µm)

Repeatability < ± 0.001 % F.S. (Minimum ± 2.5 µm)

Temperature coefficient < 15 ppm/°C Hysteresis < 4 µm
