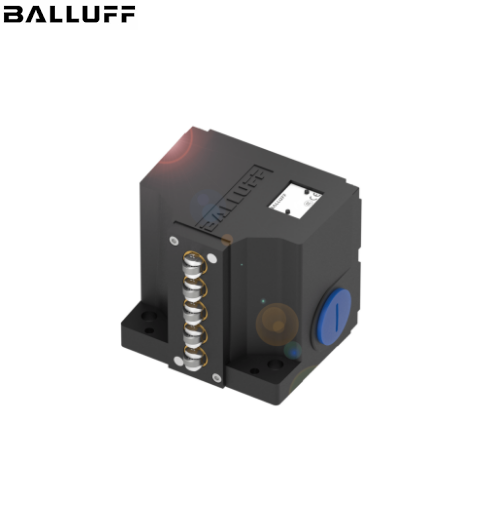

Model: BNS0287 BNS 819-B03-D12-61-12-10 ǀ Cảm biến vị trí

Model: BNS0287 BNS 819-B03-D12-61-12-10 ǀ Cảm biến vị trí

Features:

Dimension; 79 x 48 x 63 mm

Housing material: Aluminum, Anodized

Number of switching positions: 3x Chisel

Version: Snap contact

Operating principle: 1-3. Switch position: Mechanical

Continuous current: 1-3. Switch position: 6 A

Rated operating voltage Ue: 1-3. Switch position: 250 V AC

Installation: Vertical

Approach direction: longitudinal, parallel to attachment surface

Approach speed: 1-3. Switch position: 40 m/min

Switch position spacing: 12 mm

Connection type: 1-3. Switch position: Screw terminal

Ambient temperature: -5...85 °C

IP rating: IP67
