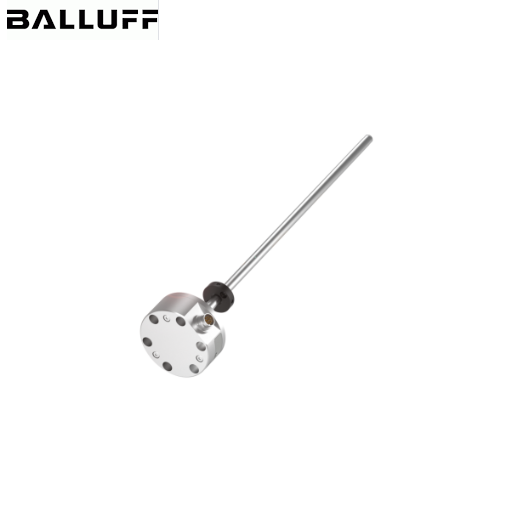

Cảm biến từ (Magnetostrictive Sensors)

Model: BTL18CZ BTL7-E500-M0850-K-SR32

Key Features

Style
Compact rod series

Mounting
Flange Ø18h6 plus holes

Housing material
Stainless steel (1.4305)

Magnets, number max.
1

Connection
Connector, M16x0.75, 8-pin

Analog output
Analog, current 4…20 mA

Measuring range
850 mm

Sampling frequency max.
1000 Hz

Non-linearity max.
±0.01 %FS

Repeat accuracy
± 10 µm

Operating voltage Ub
10...30 VDC

Ambient temperature
-40...85 °C

IP rating
IP67

Approval/Conformity
CE, cULus, EAC, WEEE
