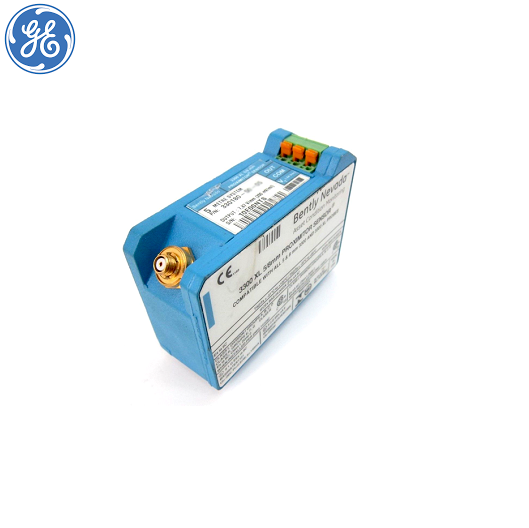

Cảm biến tiệm cận (Proximity Sensor)_Model: 330180-50-00_Bently Nevada Viet Nam

Cảm biến tiệm cận (Proximity Sensor)-Bently Nevada

Model: 330180-50-00

Thông tin kỹ thuật:

Proximitor Sensor Input: Accepts one non-contacting 3300-series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.

Power:

+Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers.

+Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Output Resistance: 50 Ohm

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
