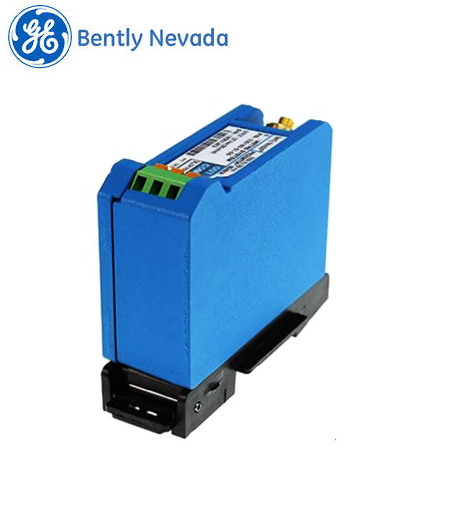

Cảm biến tiệm cận (Proximitor Sensor)_Model: 330180-91-05

Cảm biến tiệm cận (Proximitor Sensor) - Bently Nevada

Model: 330180-91-05

Specifications:

Proximitor® Sensor Input: Accepts one noncontacting 3300- series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.

Power: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Output resistance: 50 Ω
