Description

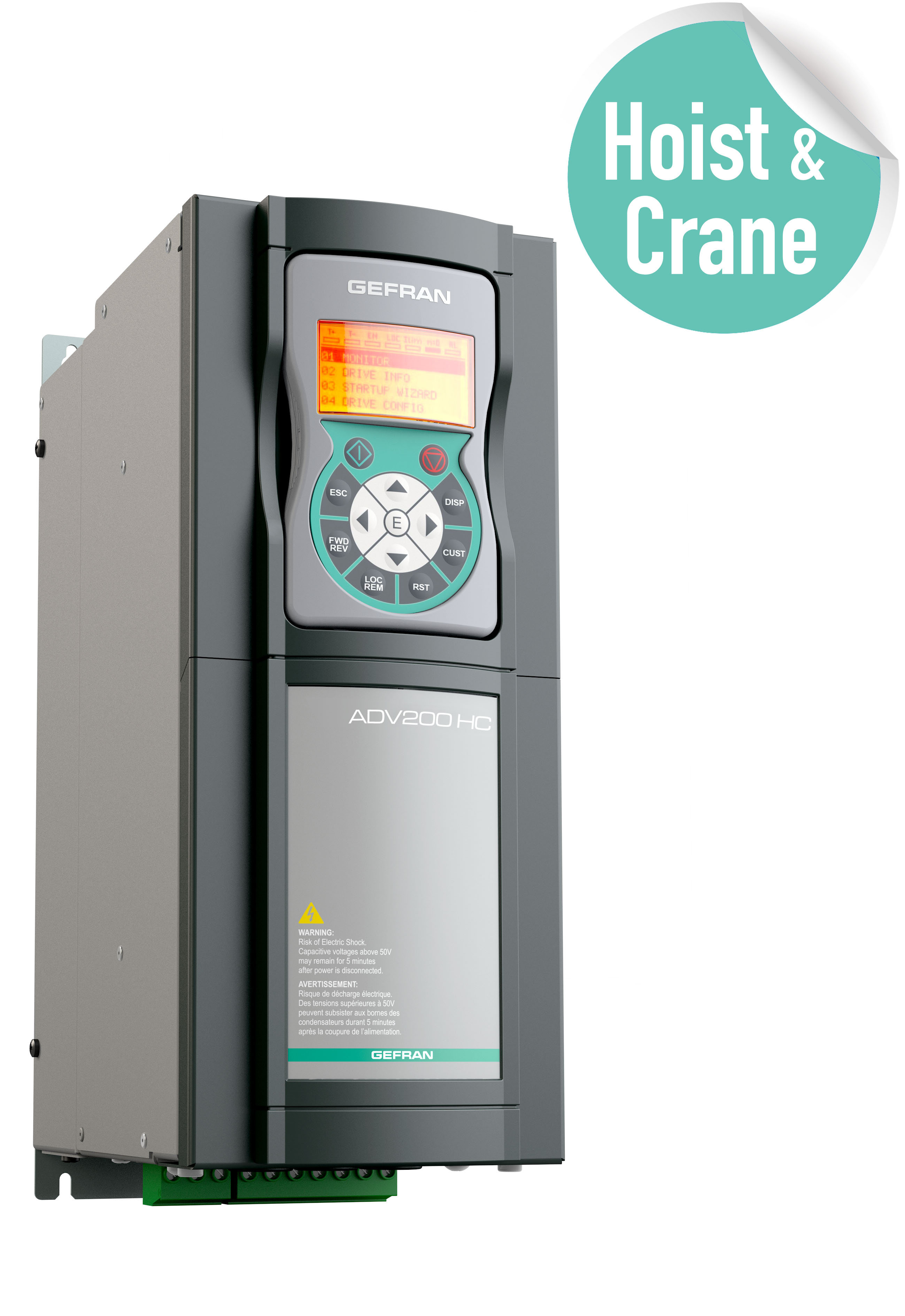

Field-oriented vector inverter, from 1,5kW up to 1.8MW
* Mains supply:
- 3 x 380…480Vac, 50/60Hz (-4 models )
- 3 x 690Vac, 50/60Hz (-6 models )
- 450…750Vdc (-DC-4 models)
- 600…1120Vdc (-DC-6 models)
* Motor ratings from 1,5kW (2Hp) to 1.8MW (2400Hp)
* Certifications: CE. UL, cUL

Features:

  • Motor type: asynchronous
  • Regulation control modes: Open Loop FOC, V/F
  • Max Output frequency 500Hz
  • DC Choke integrated up to 160kW
  • EMC Filter integrated
  • Dynamic Braking Module integrated up to 75kW
  • Overload according with IEC146 Class 1 and Class 2
  • Light duty and heavy duty overload management
  • Up to 4 options on board
  • Safety Stop card in accordance with EN 954-1 (Cat.3)
  • Multilanguage programming software (5 languages)
  • Advanced PLC according to the IEC61131-3 Standard
  • Basic PLC Integrated
  • Alphanumeric programming keypad
  • 2 Bipolar Analogue Inputs  (Voltage/Current)
  • 2 Bipolar Analogue Outputs (1: Voltage/Current, 1: Voltage)
  • 6 Digital Inputs (PNP / NPN)
  • 2 Digital Outputs (PNP / NPN)
  • 2 Relay Outputs, single contact
  • RS485 Serial Line (Modbus RTU protocol)
  • Interfacing with the more common field bus: ProfiBus, CANopen, DeviceNet, EtherCAT, EtherNet/IP, BACnet, LonWorks
  • IP20 protection degree as standard
  • IP54 external with enclosure (7,5 – 90 kW)
